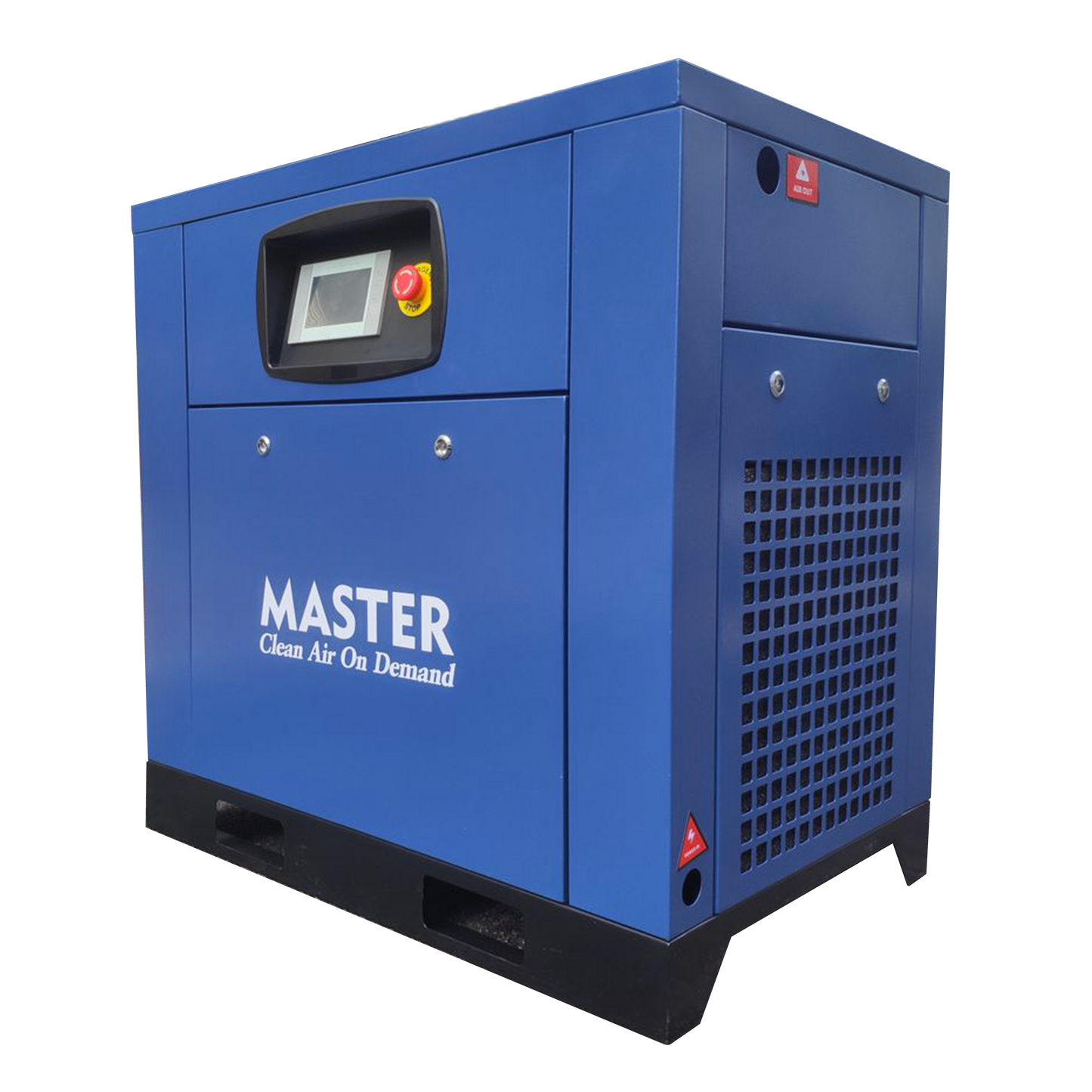

220 HP Rotary Screw Air Compressor

220 HP Rotary Screw Air Compressor

Shipping calculated at checkout.

Select Phase and Voltage
Contact for Quote View full details
*All Pictures shown are for illustration purposes only. Actual product may vary due to enhancement*

10-year Warranty with Free Parts and Service Guidance

The latest generation Master 220 HP rotary screw air compressor

Full-colour High end LED touch screen controller with variable frequency drive which features a soft start (pre-programmed plug & play system)



Model

220 Horsepower Master MST-220 rotary screw air compressor
Kilowatt

160 kW
CFM & PSI

1052 CFM @ 101 PSI heavy-duty industrial air delivery
Adjustable Pressure

50 PSI to 145 PSI
Pressure rating

145 PSI
Outlet size

80 Inch
Dimensions

98.4 x 67 x 72.8 inches
Weight

3500 kilograms
Noise

72 dB



  • Direct drive results in low maintenance and high efficiency by eliminating any power transmission losses due to belts and pulleys.
  • Permanent magnet heavy-duty induction motor.
  • Variable frequency drive to adjust the airflow on demand.
  • No supervision is needed due to intelligent design, highly energy-efficient VFD saves a lot of electricity due to a pre-programmed air on-demand smart control system.

OPTIONS/ADD-ONS AVAILABLE

For more details, call or text:+1 (647) 363-5872
