4000 kW (4 mW) Prime Power Natural Gas Generator (480/277V Three Phase 60Hz)

4000 kW (4 mW) Prime Power Natural Gas Generator (480/277V Three Phase 60Hz)

Shipping calculated at checkout.

Contact for Quote View full details

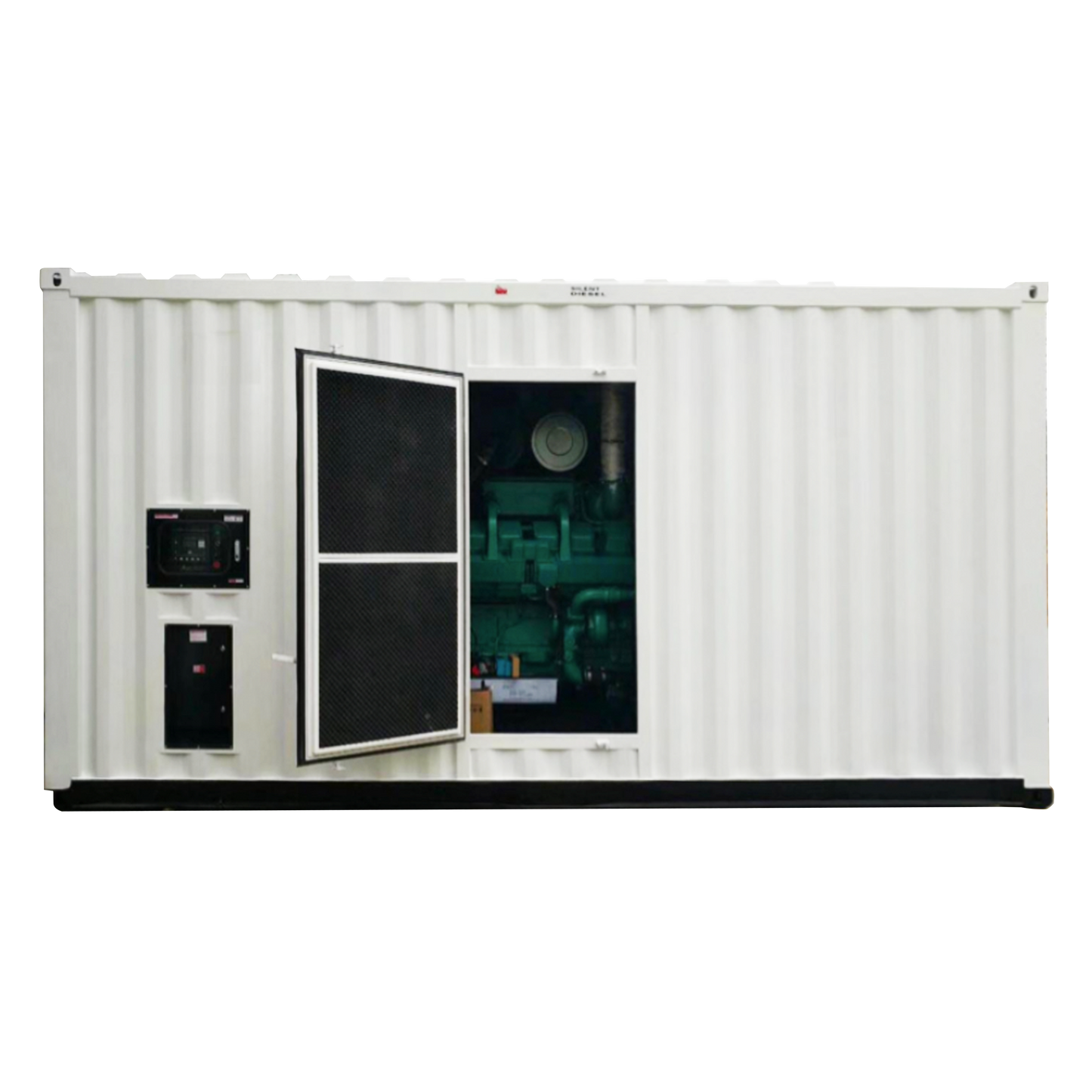

*All Pictures shown are for illustration purposes only. Actual product may vary due to enhancement*

1-year/3000 hours Warranty with Free parts and service guidance!

Model

Rated Power

4000 kW (4 mW)

5000 kVA
Fuel Type

Natural Gas (PNG)

Output

Voltage

480/277V
Phase

3 Phase 4 Wires
Frequency

60 Hz
Rated Speed

1800 RPM
Power Factor

0.8
Engine Manufacturer

Baudouin
Alternator Manufacturer

Stamford
Control Module Manufacturer

Deep Sea
Parallel Circut Breaker

ABB/4P/E1B 1600 D LI FF 4P NST Intelligent Circuit Breaker
Solenoid Valve

DUNGS, Germany or Honeywell, USA
Pressure Regulating Valve

MADAS, Italy
40HQ Silent Containerized Enclosure Treatment

Acid Pickling and Phosphating Treatment, Anti-rust, Anti-corrosion
Dimensions
(L x W x H) mm

12,030 x 2,440 x 2,380
Approximate Weight (kg)

13,500 kg

Standard configuration

Pressure regulating valve, filter, flame arrester, flange, DN80 flange, maintenance-free battery, battery connector, shock-absorbing pad, Muffler (Installed), etc.

Each machine is equipped with a Gas leak alarm, an explosion-proof lamp, and an Automatic shut-off valve.

  • Copper 50° Radiator
  • 24V DC Start Motor
  • High-Performance Circuit Breaker
  • Linear Vibration Isolators between the Base and Engine-Generator
  • Liquid Cooled

2 Separate Cooling Systems

  1. High-temperature circuit equipped with a thermostatically-controlled system with two gear-driven coolant pumps
  2. Low-temperature circuit equipped with belt-driven coolant pump.
